Tee-Types

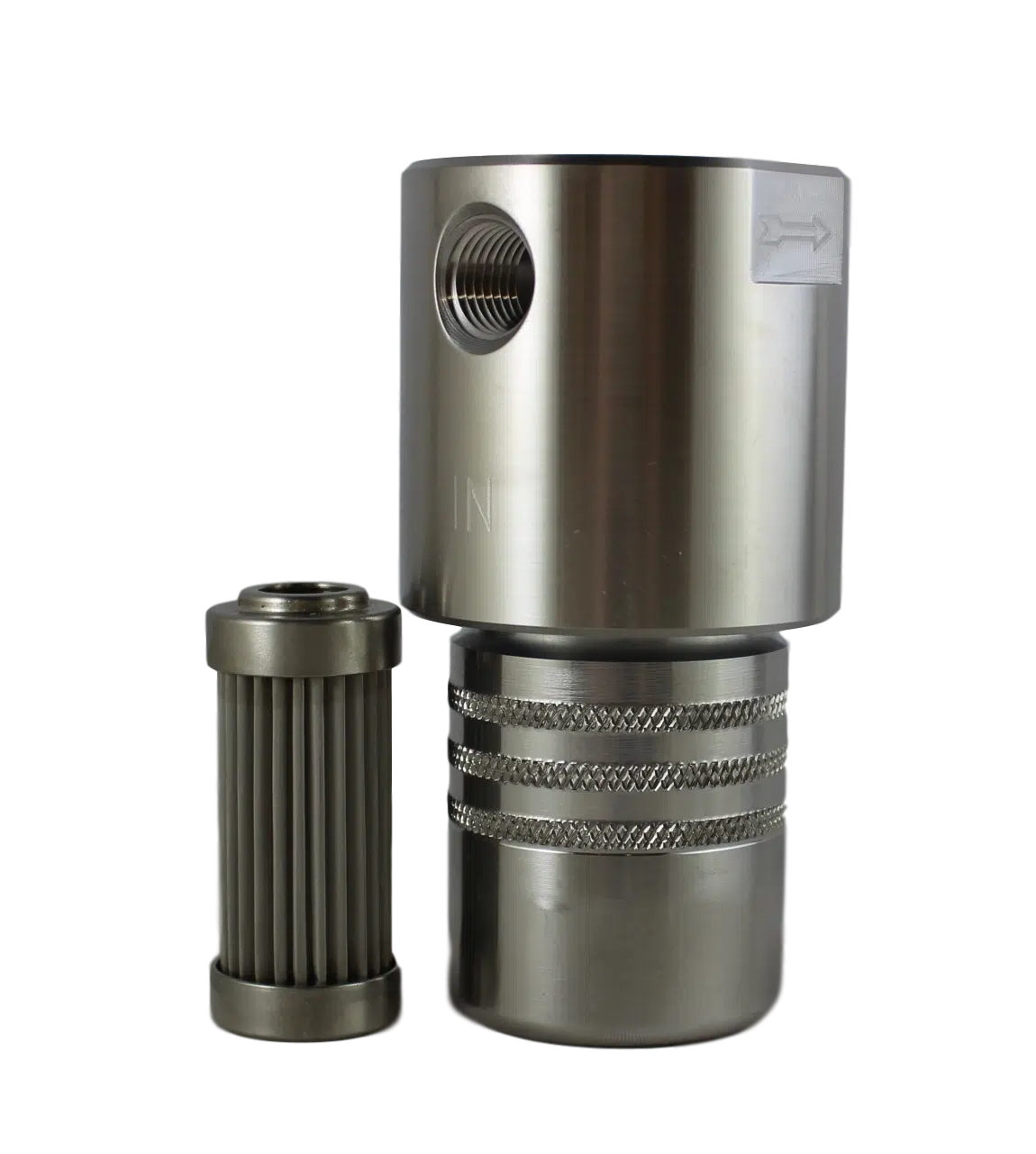

  • 8100 Series

    Super Mini Tee Type Filters

    The 8100 super-mini T-type filters are constructed from stainless-steel and weigh only 2.5lbs. These units are in-line and compact, high-pressure filter housings measuring 2in x 3.75in or 2in x 5.5in with a 1/4in National Pipe Thread Taper (NPT) port.

    Up To 10,000 PSI · Max Flow: 2.5 GPM · Stainless Steel Construction ·
    PDF Spec Sheet PDF Service Instructions
  • 8500 Series

    Tee Type Filters

    The 8500 Series is a T-Type filter constructed from stainless steel and aluminum accommodating operating pressures up to 6,000psi and flows up to 50gpm. They have NPT or SAE ports and can be equipped with visual or electrical differential pressure indicators. The filter elements can be cellulose, microglass, sintered metal or woven wire mesh.

    Up To 6,000 PSI · Max Flow: 50 GPM / 4000 SCFM · Stainless Steel, Aluminum, Brass, Monel Construction ·
    PDF Spec Sheet PDF Flow Data PDF Service Instructions
  • 8500 Coalescing Series

    Coalescing Tee Type Filters

    The 8500 Coalescing Series is ideal for removing liquid and vapor contaminants from gaseous flows. Our filters provide high coalescing efficiency up to 99.995% at 0.3 micron. With operating pressures up to 6,000psi and flows up to 1200 SCFM, this is a great option to protect your gaseous systems.

    Up to 6,000 PSI · Max Flow: 1,200 SCFM · Stainless Steel, Aluminum Construction · Up to 99.995% Efficiency at 0.3 micron ·
    PDF Spec Sheet PDF Service Instructions
  • 8600 Series

    Tee Type Filters

    The 8600 Series is a T-Type High-pressure filter assembly accommodating operating pressures up to 40,000psi. The housings can be made from 303, 316 or 17-4 stainless steel and have M/P or NPT ports depending upon the desired pressure. They can be equipped with visual or electrical differential pressure indicators. The filter elements can be micro glass, sintered metal or woven wire mesh.

    Up To 40,000 PSI · Max Flow: 24 GPM / 4000 SCFM · Stainless Steel Construction ·
    PDF Spec Sheet PDF Flow Data PDF Service Instructions
  • 8700 Series

    Tee Type Filters

    The 8700 Series is a T-Type filter assembly that can accommodate operating pressures as high as 30,000psi. The housings are made from aluminum or stainless steel and can have NPT, M/P or H/P ports depending upon the desired operating pressure. They can be equipped with visual or electrical differential pressure indicators. The filter elements can be cellulose, micro glass, sintered metal or woven wire mesh.

    Up To 30,000 PSI · Max Flow: 7.5 GPM / 210 SCFM · Stainless Steel, Aluminum Construction ·
    PDF Spec Sheet PDF Flow Data PDF Service Instructions
